40G QSFP+ AOC Cable, 40GBASE Ethernet Active Optical Cable, 40G QSFP+ to 4 x 10G SFP+, OM3 MMF

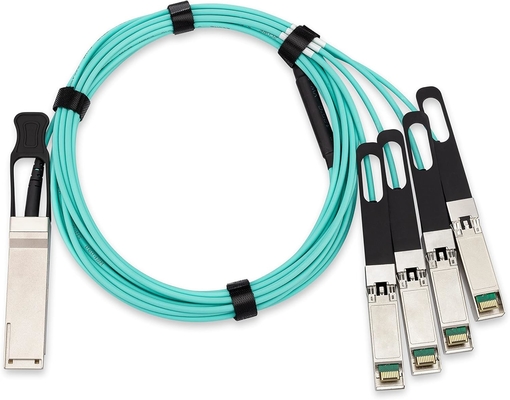

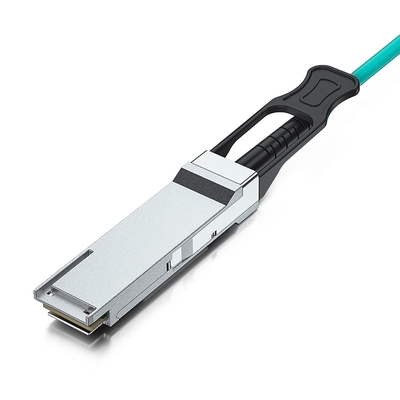

The SN-40GQ4SAOC-XX is a Four-Channel, Pluggable, Parallel, Fiber-Optic QSFP+ Active Optical Cable (AOC) to 4× SFP+ Active Optical Cable break-out solution. This Breakout cable is intended for 40G to 4× 10G applications.

This AOC is a high performance cable for short-range multi-lane data communication and interconnect applications. It integrates four data lanes in each direction with 40Gbps aggregate bandwidth. Each lane can operate at 10.3125 Gbps. These cables also support 4 x 10G InfiniBand QDR applications and are backwards compatible to the 4 × 5G IB DDR and 4 × 2.5G IB single IB SDR applications.







Compatible with Cisco , Juniper, Huawei, Mikrotik, Netgear, 3Com, Foundry, Alcatel-Lucent, Avaya, Nortel, D-Link, Intel, ZyXEL, Plane, F5, Dell, Allied Telesis, Edge-Core, Foundry, Avago, BDCOM, Ruij Jie, ZTE, Ubnt UniFi, Fortinet, Calix, Generic, UFiber, Datacom, Ruckus, Mellanox, Linksys, IBM, Viavi, Nokia.

The transmission speed can reach 40Gb/s. Universial compatible with open switch.

It is suitable for high-speed data transmission of large data in cloud computing, data center, server, high-speed network card, large data storage, disk array, high-speed network, virtual reality, unmanned vehicles and other equipment.



 Features



• Compliant to the 40GBASE-SR4 and XLPPI

Specification per IEEE 802.3ba-2010 and supporting

40G-IB-QDR / 20G-IB-DDR / 10G-IB-SDR applications

• Compliant to the industry standard SFF-8436

QSFP+ Specification

• Power Level 1: Max Power < 1.5 W

• Operate at 10.3125 Gbps per channel with 64b/66b

encoded data for 40GbE application and at 10 Gbps

with 8b/10b compatible encoded data for 40G-IB-QDR application

Each 4× SFP+ end:

• Compliant to the electrical specifications per SFF-8431 Specifications for Enhanced Small Form Factor Pluggable Module
• Mechanical specifications per SFF Committee SFF-8432 Improved Pluggable Form factor “IPF”
• Maximum power dissipation 0.35W per end.

Active Optical Cable Assembly:

• 0 to 70 C degree case temperature operating range

• Proven High Reliability 850 nm technology: Rayoptek VCSEL transmitter and Rayoptek PIN receiver

• Hot pluggable for ease of servicing and installation

• Two Wire Serial interface

• Utilizes optical fiber for high density and thin, lightweight cable management



Application

• 40GbE and 10GbE break-out applications for Datacom switch and router connections
• 40G to 4×10G density applications for Datacom and Proprietary protocol applications
• Datacenter



Ordering Information



Part Number	Product Description	Distance
SN-40GQ4SAOC-XX	40Gb/s QSFP+ TO 4x10G SFP+ Active Optical Cable,	XXX Meter

Data Center Cabling Solution: DAC Cables vs AOC Cables

DAC cables and AOC cables are widely used in HPC network cabling systems in data centers due to their low-latency, low-power, and low-cost advantages.DAC cables and AOC cables are available in a variety of configurations to meet network needs. Each is available in 10G SFP+, 25G SFP28, 40G QSFP+ and 100G QSFP28 data rates with additional options from 40G to 4x10G or 100G to 4x25G variants.

DAC/AOC Basics and Types

Direct Attach Cable (DAC) consists of a biaxial copper cable with SFP+/SFP28/QSFP+/QSFP56/QSFP28 connectors terminated at both ends, which can provide a direct electrical connection to an active device.DAC cables can be classified into two categories: passive DACs and active DACs.Both passive and active DAC cables can transmit electrical signals directly through the copper cable. The former can transmit without signal conditioning, while the latter has electronics inside the transceiver to enhance the signal. Generally, DAC cables are used to connect switches, servers, and storage devices within racks.



Active Optical Cable (AOC) consists of multimode fiber with SFP-type connectors terminated at both ends. It requires an external power supply to complete the conversion of electrical signals to optical signals, from electrical signals to optical signals and finally to electrical signals. Generally speaking, AOC cables are mainly used to connect switches, servers and storage between different racks within a data center.



DAC/AOC Cable Comparison
DAC cables are mainly used to connect switches, servers, and storage within a rack, and AOC cables are mainly used to connect switches, servers, and storage between different racks within a data center. In addition to this, DAC AOC cables differ in the following ways.



Power Consumption

Under normal circumstances, the power consumption of AOC cables is higher than that of DAC cables, which is 1 ~ 2 w. The power consumption of DAC active cables is less than 1 w. Passive cables, due to the heat dissipation design of direct-attachment copper cables, consume almost zero power and are less than 0.15 w. Therefore, when the DAC option is used, the operating cost of power consumption will be reduced.



Transmission Distance

AOC cables use fiber optic technology for transmission distances of up to 100m, while DAC cable link length is limited to 10m (Passive DAC: 7m; In summary, the DAC cabling option is suitable for short-distance transmission, and the AOC cabling option is suitable for long-distance networking.



Note:Max. Signal distance that can be transmitted over DAC cable depends on the data rate. The link length decreases as the data rate increases, e.g. 100G DAC cable can only transmit up to 5 meters.



Cost

Roughly speaking, DACs have simpler internals and fewer components, and copper cables are much cheaper than fiber optics. When implemented in large data centers, a large number of DAC cables will save money compared to AOC options. For short distance applications, DAC does offer a cost-effective solution over aoc, but for remote applications, it is wise to list the overall cost by comparing the two options.



DAC Cable Typical Application

The primary use of the 10G SFP+ dac is to connect switches/servers to switches inside or adjacent to the rack. In other words, these 10G direct-attach cables can be used as an alternative to ToR (top-of-rack) interconnections between 10G ToR switches and servers or 10GbE switch stacking. Since 10G SFP+ DACs typically support link lengths of 7 meters with low power consumption, low latency and low cost, this option is ideal for such short distance server-to-switch connections.

Typical Applications for 10G SFP+ AOC Cables

Since there are no strict link length limitations, 10G SFP+ aoc is typically used in multiple locations in the data center such as ToR, EoR (end of row) and MoR (middle of row). As with dac, all servers are connected to top-of-rack Ethernet switches, and each server has one or two Ethernet connections to the switch; these connections can be patched by using AOC cables.

Additionally, the utilization of 10G aoc in the data center can be implemented in several major network areas (e.g., Spine, Leaf, or Core switching areas). Interconnections are typically achieved by employing these 10G SFP+ aocs, which have a theoretical maximum reach of 100 meters
