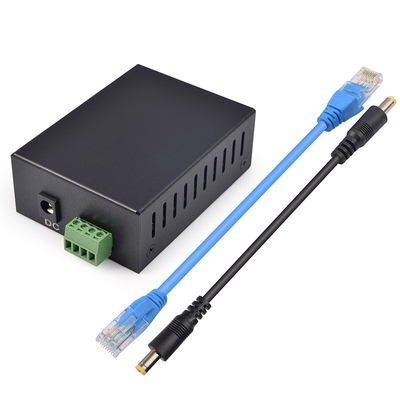

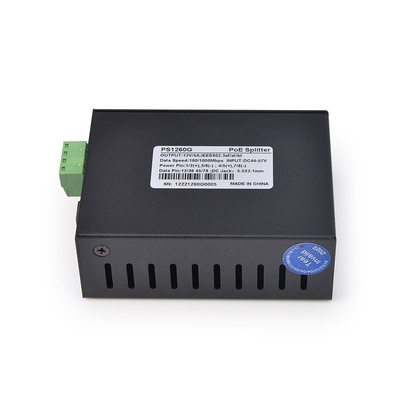

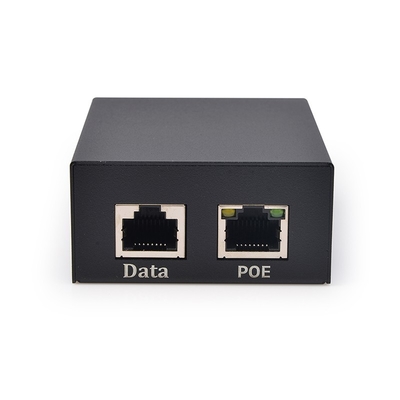

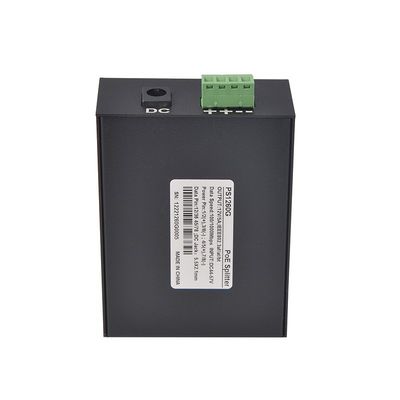

IEEE802.3bt POE Splitter Gigabit 12V 5A 60W 1500V High voltage isolation

IEEE802.3bt POE Splitter Gigabit 12V 5A 60W 1500V High voltage isolation

PoE splitter,it is an economical and practical PoE remote power equipment base on IEEE802.3af/at/bt standard. It can separate the power and data via cable transmission.Proper matching use with poe switch or PSE injector which meet standard IEEE802.3af/at/bt,Provides power and data at the same time for the terminal device does not support PoE.
PoE splitter, output voltage of 12V use with the power supply equipment, It helps to expand wireless city, Security monitoring and other poe practical place, and is not restricted by layout of power line.

 Features

· Support international standard IEEE802.3 af/at/bt(60W);

· Support 10/100/1000Mdata transmission

· PD support 44V-57V voltage transmission,Automatically detects power supply from PSE power supply module

· 12V power output,easy to access Poe network for non-poe terminal

· Support the isolation circuit protection,can effectively protect electrical equipment.

· Support the short circuit,overvoltage protection

Technical Parameters
