10/100/1000Mbps POE Extender IEEE802.3at/af work with POE Switch and POE injector

Name: 10/100/1000Mbps POE Extender IEEE802.3at/af work with POE Switch and POE injector
Brand: SONBORN
SKU: SN-PE30G
Price: 163. USD
Availability: InStock
Rating: 4.8 (104 reviews)

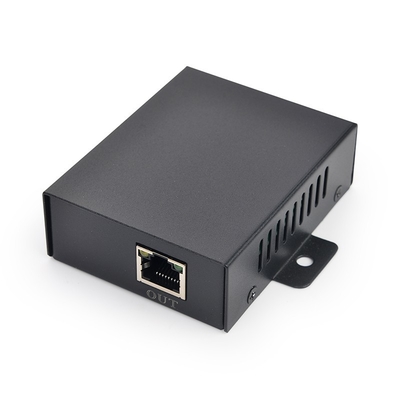

Large Image : 10/100/1000Mbps POE Extender IEEE802.3at/af work with POE Switch and POE injector

Product Details:

Place of Origin:	CHINA
Brand Name:	SONBORN
Certification:	CE FCC ROHS
Model Number:	SN-PE30G

Payment & Shipping Terms:

Minimum Order Quantity:	1PC
Price:	Please send e-mail to sonbornet@163.com
Packaging Details:	Cartons
Delivery Time:	5~8 Workdays
Payment Terms:	T/T
Supply Ability:	5000PCS

Contact Now

Detailed Product Description

10/100/1000Mbps POE Extender IEEE802.3at/af work with POE Switch and POE injector

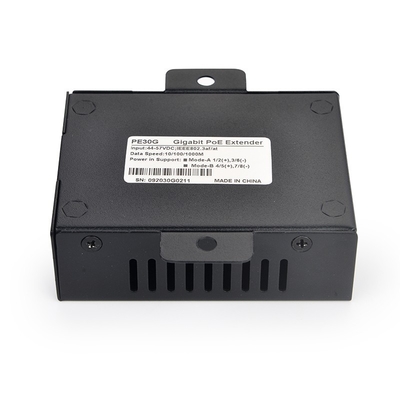

10/100/1000Mbps POE Extender IEEE802.3at/af work with POE Switch and POE injector 0

Product Overview
Extends Power over Ethernet Installations to 200 Meters
PoE Extender is a cost effective way to extend the Ethernet network range beyond 100m, delivering both data and power to network devices such as WLAN Access Points and Network Cameras up to a distance of 200m while complying with IEEE PoE and Data standards. The PoE Extender supports 10/100/1000Mbps data rates and delivers 802.3at power levels, up to 25.5W. The PoE Extender does not require local power and is powered via the PoE input.

Key Features
* Extended PoE installation range by additional100m
* Supports 10/100/1000Mbps datarates
* Provides 802.3af power levels when powered by 802.3afPSE and 802.3af PD
* Provides 802.3af power levels when powered by 802.3atPSE and 802.3af PD
* Provides 802.3atpower levels when powered by 802.3at PSE and 802.3at PD
* Extenders can be cascaded to reach up to400m
* Cost effective installation - no need for localpower
* Plug and play installation - no configurationneeded

Works Well With
PoE Switch
PoE Injector

Technical Specification

Pass Through Data Rates	10/100/1000 Mbps
Power over Ethernet Output	Pin Assignment and Polarity: 3/6 (+), 1/2 (-) Output Power Voltage: 45-57Vdc
Input Power Requirements	PoE, supports alternatives A and B DC Input PoEVoltage: 46-57 Vdc Max Input Current: 0.7A
Indicators	System Indicator: DC Power Input/Output (Orange) Ethernet Data Input/Output (Green)
Regulatory Compliance	IEEE802.3at (PoE), WEEE Compliant
Dimensions: (L x W x H) / Weight	95 mm x 71.5 mm x 26.5 mm / 300g
Environmental Conditions	Operating Ambient Temp.: 32°to 104°F (0 to 40°C) (1G rate) 32° to 122°F (0 to 50°C) (10/100M rate) Operating Humidity: Maximum 90%, Non-condensing Storage Temperature: -4°to 158°F (-20°to 70°C) Storage Humidity: Maximum 95%, Non-condensing

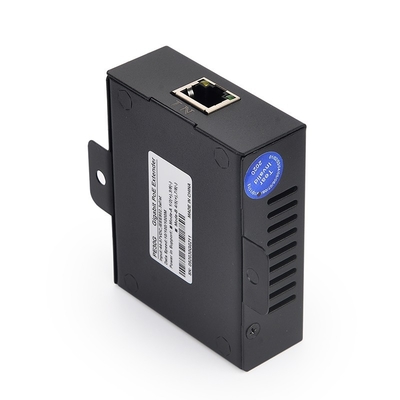

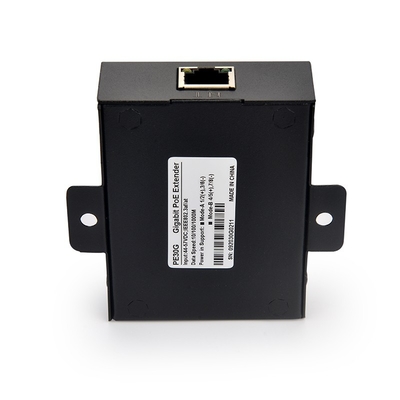

10/100/1000Mbps POE Extender IEEE802.3at/af work with POE Switch and POE injector 1
