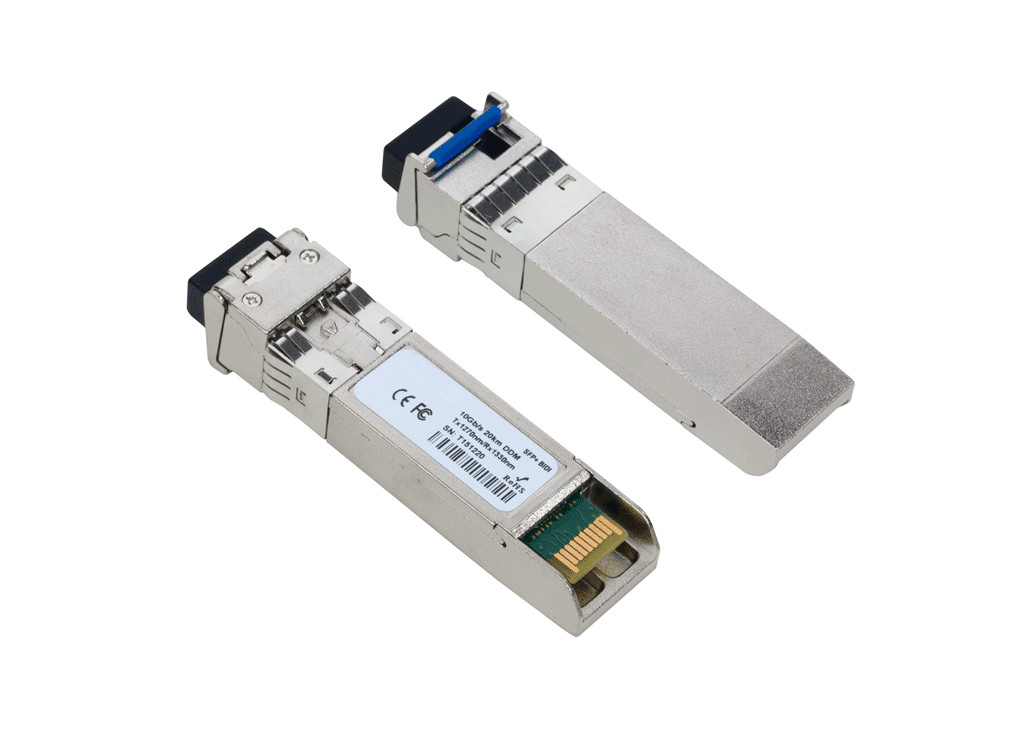

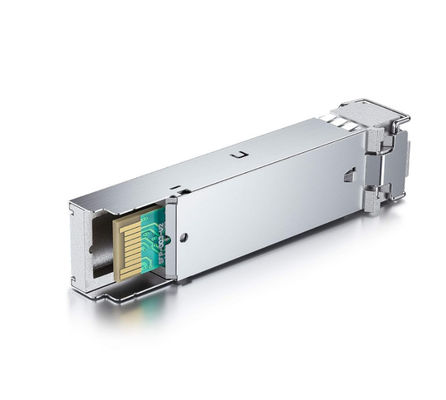

10G CWDM SFP+ Transceiver 20km, 1270～1610nm, CWDM DFB, Single mode
10G CWDM SFP+ transceiver supports up to 10km link lengths over single-mode fiber (SMF) via an LC duplex connector. This transceiver is compliant with SFF-8431, SFF-8432 and IEEE 802.3ae standards. Digital diagnostics functions are available via a 2-wire serial interface, as specified in SFF-8472, to allow access to real-time operating parameters. This transceiver uses high-quality TOSA, ensuring stable performance and reliable quality. Featuring low power consumption, high speed, this 10G SFP+ transceiver is ideal for data center and 10G Ethernet etc.
Features
- Supports 9.95 to 11.3Gb/s bit rates
- Duplex LC connector
- CWDM DFB transmitter, PIN photo-detector
- MF links up to 10km
- 2-wire interface for management specifications compliant with SFF 8472 digital diagnostic monitoring interface
- Power Supply :+3.3V
- ower consumption<1.5W
- Temperature Range: 0~ 70°C
- RoHS compliant
Application
- 10GBASE-LR/LW Ethernet
- Sonet OC-192/SDH
- 10G Fibre Channel 1200-SM-LL-L
Recommended Operating Environment
| Parameters |
Symbol |
Min. |
Typical |
Max. |
Unit |
| Case operating Temperature |
Industrial |
TC |
-40 |
|
85 |
°C |
| Extended |
-5 |
|
85 |
°C |
| Commercial |
0 |
|
+70 |
°C |
| Supply Voltage |
VCC |
3.135 |
|
3.465 |
V |
| Supply Current |
Icc |
|
|
300 |
mA |
| Inrush Current |
Isurge |
|
|
Icc+30 |
mA |
| Maximum Power |
Pmax |
|
|
1 |
W |
Optical Parameters(TOP = 0 to 70°C, VCC = 3.135 to 3.465 Volts)
| Parameter |
Symbol |
Min. |
Typical |
Max. |
Unit |
Note |
| Transmitter Section: |
| Center Wavelength |
λc |
λ-6.5 |
|
λ+6.5 |
nm |
|
| spectral width |
△λ |
|
|
1 |
nm |
|
| Average Optical Power |
Pavg |
-8.2 |
|
0.5 |
dBm |
1 |
| Optical Power OMA |
Poma |
-5.2 |
|
|
dBm |
|
| Laser Off Power |
Poff |
|
|
-30 |
dBm |
|
| Extinction Ratio |
ER |
3.5 |
|
|
dB |
|
| Transmitter Dispersion Penalty |
TDP |
|
|
3.2 |
dB |
2 |
| Relative Intensity Noise |
Rin |
|
|
-128 |
dB/Hz |
3 |
| Optical Return Loss Tolerance |
|
20 |
|
|
dB |
|
| Receiver Section: |
| Center Wavelength |
λr |
1260 |
|
1355 |
nm |
|
| Receiver Sensitivity |
Sen |
|
|
-14.5 |
dBm |
4 |
| Stressed Sensitivity (OMA) |
SenST |
|
|
-10.3 |
dBm |
4 |
| Los Assert |
LOSA |
-25 |
|
- |
dBm |
|
| Los Dessert |
LOSD |
|
|
-15 |
dBm |
|
| Los Hysteresis |
LOSH |
0.5 |
|
|
dB |
|
| Overload |
Sat |
0 |
|
|
dBm |
5 |
| Receiver Reflectance |
Rrx |
|
|
-12 |
dB |
|
SONBORN's Optical transceivers are 100% compatible with major brands like Cisco, Huawei, Extreme, HP, Finisar, Broadcom, Foundry, Alcatel, D-link, Enterasys, Netgear, Juniper, Nortel, Linksys, Allied, Zyxel, Dell, Redback, H3C, ZTE, Ruijie, Ciena , Alcatel-lucent, etc.,
If you are not sure about the compatibility of your device, please feel free to contact us for customized SKU to meet your needs(We offer many compatible options
Qualified through a rigorous process with advanced equipments to ensure you get the high quality and reliable optics.
