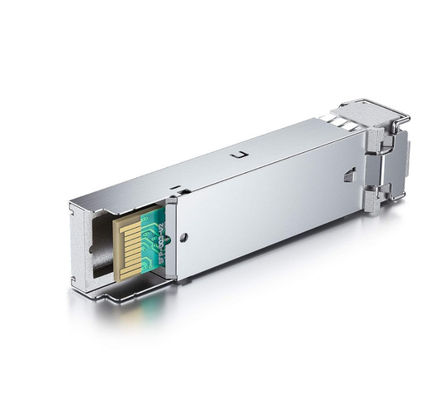

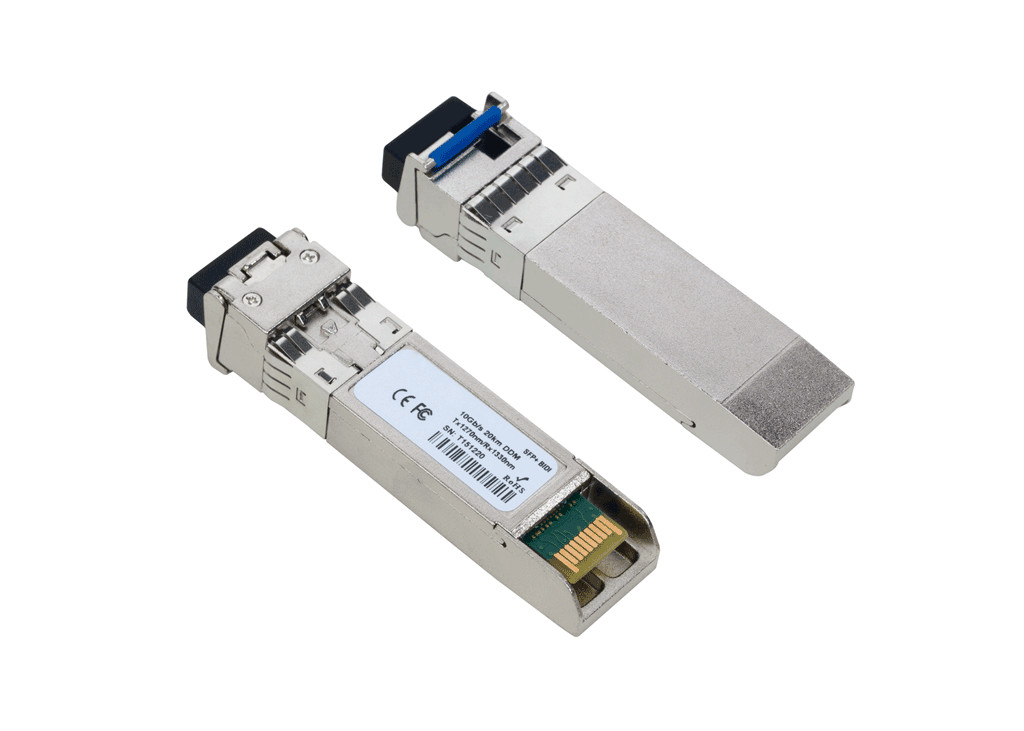

10Gb/s 80km CWDM SFP+ Transceiver, 1470～1610nm, CWDM EML&APD, Single mode
10G CWDM SFP+ 80km transceiver supports up to 80km link lengths over single-mode fiber (SMF) and is suitable for 10G Ethernet and Data Center applications. It is compliant with IEEE 802.3ae, SFP+ MSA, SFF-8472 and SFF-8431 standards. The built-in digital diagnostics monitoring (DDM) allows access to real-time operating parameters. This transceiver uses Sumitomo's TOSA, ensuring stable performance and reliable quality.
For industrial operating temperature range and can work in harsh industrial environments, such as telecommunication, data processing & management, the application of industrial and factory automation, outdoor applications, rail and intelligent transportation systems (ITSs), marine, oil and gas, mining etc.
Features
- Supports 9.95 to 11.3Gb/s bit rates
- Hot-Pluggable
- Duplex LC connector
- 1470～1610nm CWDM EML transmitter, APD photo-detector
- SMF links up to 80km
- 2-wire interface for management specifications compliant with SFF 8472 digital diagnostic monitoring interface
- Power Supply :+3.3V
- Power consumption<2W
- Temperature Range: 0~ 70°C
- RoHS compliant
Application
- 10GBASE-ZR/ZW Ethernet
- Sonet OC-192/SDH
- 10G Fibre channel
- CWDM Networks
Recommended Operating Environment
| Parameters |
Symbol |
Min. |
Typical |
Max. |
Unit |
| Case operating Temperature |
Industrial |
TC |
-40 |
|
85 |
°C |
| Extended |
-5 |
|
85 |
°C |
| Commercial |
0 |
|
+70 |
°C |
| Supply Voltage |
VCC |
3.135 |
|
3.465 |
V |
| Supply Current |
Icc |
|
|
300 |
mA |
| Inrush Current |
Isurge |
|
|
Icc+30 |
mA |
| Maximum Power |
Pmax |
|
|
1 |
W |
Optical Parameters(TOP = 0 to 70°C, VCC = 3.135 to 3.465 Volts)
| Parameter |
Symbol |
Min. |
Typical |
Max. |
Unit |
Note |
| Transmitter Section: |
| Center Wavelength |
λc |
λ-6.5 |
|
λ+6.5 |
nm |
|
| spectral width |
△λ |
|
|
1 |
nm |
|
| Average Optical Power |
Pavg |
0 |
|
+4 |
dBm |
1 |
| Laser Off Power |
Poff |
|
|
-30 |
dBm |
|
| Extinction Ratio |
ER |
8.2 |
|
|
dB |
|
| Transmitter Dispersion Penalty |
TDP |
|
|
3.0 |
dB |
2 |
| Relative Intensity Noise |
Rin |
|
|
-128 |
dB/Hz |
3 |
| Optical Return Loss Tolerance |
|
20 |
|
|
dB |
|
| Receiver Section: |
| Center Wavelength |
λr |
1260 |
|
1620 |
nm |
|
| Receiver Sensitivity (OMA) |
Sen |
|
|
-23 |
dBm |
4 |
| Stressed Sensitivity (OMA) |
SenST |
|
|
-21 |
dBm |
4 |
| Los Assert |
LOSA |
-34 |
|
- |
dBm |
|
| Los Dessert |
LOSD |
|
|
-24 |
dBm |
|
| Los Hysteresis |
LOSH |
0.5 |
|
|
dB |
|
| Overload |
Sat |
-7 |
|
|
dBm |
5 |
| Receiver Reflectance |
Rrx |
|
|
-12 |
dB |
|
