8 Channels DWDM Mux Demux, 100GHz with Monitor, Expansion and 1310nm Port LC/UPC, Dual Fiber

Name: 8 Channels DWDM Mux Demux, 100GHz with Monitor, Expansion and 1310nm Port LC/UPC, Dual Fiber
Brand: SONBORN
SKU: SN-DWDM-MD-D8
Rating: 4.7 (122 reviews)

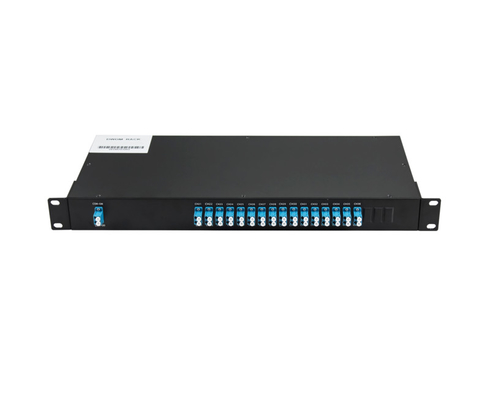

Large Image : 8 Channels DWDM Mux Demux, 100GHz with Monitor, Expansion and 1310nm Port LC/UPC, Dual Fiber

Product Details:

Place of Origin:	CHINA
Brand Name:	SONBORN
Certification:	CE FCC ROHS
Model Number:	SN-DWDM-MD-D8

Payment & Shipping Terms:

Minimum Order Quantity:	1PC
Price:	Please contact us
Packaging Details:	Cartons
Delivery Time:	5~8 Workdays
Payment Terms:	T/T
Supply Ability:	5000PCS

Contact Now

Detailed Product Description

Wavelength:	8 Channels	Channel Spacing:	100GHz (0.8nm)
Insettion Loss(dB):	≤2.8dB	Temperature:	Operating -40 To 85°C (-40 To 185°F) Storage -40 To 85°C (-40 To 185°F)
Passband (@-0.5dB Bandwidth)(nm):	±0.11	Return Loss:	≥45dB

8 Channels DWDM Mux Demux, 100GHz with Monitor, Expansion and 1310nm Port, LC/UPC, Dual Fiber

The 8CH Mux Demux is a high-density, low loss, and suitable for long-haul transmission passive DWDM device based on TFF (Thin Film Filter). This unit can be used as either a multiplexer or de-multiplexer (mux/demux). In accordance with the ITU-T G.694.1 100GHz grid, it maximizes the capacity of the C-band range.

Features

100GHz ITU Channel Spacing
Low insertion loss
Broadband transmission
High channel isolation
High stability and reliability
Epoxy-free optical path

Application

Channel Mux/Demux
DWDM system DWDM
Router
Fiber optical amplifier
CATV system

Specification

Parameters		8Channel
Insettion Loss(dB)		≤2.8
ITU channel		E.g.C43,C44,C45.........................C50
Min Channel Spacing(GHz)		100
Passband (@-0.5dB bandwidth)(nm)		±0.11
Insettion	Adjacent Channel	> 30
	Non-Adjacent Channel	> 40
Passband Ripple (dB)		≤0.30
Polarization Dependent Loss (dB)		≤0.30
Polarization Mode Dispersion (ps)		< 0.10
Return Loss (dB)		> 45
Directivity (dB)		> 50
Maximum Optical Power (mw)		500
Operating Temperature (℃)		-5 ~ +75
Storage Temperature (℃)		-40 ~ +85
Fiber Type		Corning SMF-28
Package Dimension (mm)		LGX/1U Rackmount

Ordering Information

Type	Port Type	Wavelength	Pigtail Type	Fiber Type
M=Mux	4=4ch	C21=1560.61	900=900um	1=SMF-28e
D=Demux	8=8ch	C23=1558.98	losse tube
	16=16ch		2000=2mm
	32=32ch		3000=3mm
	40=40ch
	48=48ch
