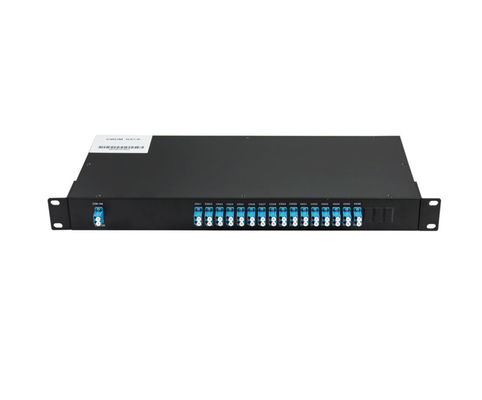

8 Channels CWDM Mux Demux, 1470-1610nm, with Monitor and Expansion Port, 2.0dB Typical IL, LC/UPC, Dual Fiber

Name: 8 Channels CWDM Mux Demux, 1470-1610nm, with Monitor and Expansion Port, 2.0dB Typical IL, LC/UPC, Dual Fiber
Brand: SONBORN
SKU: SN-CWDM-MD-D8
Rating: 5 (197 reviews)

Large Image : 8 Channels CWDM Mux Demux, 1470-1610nm, with Monitor and Expansion Port, 2.0dB Typical IL, LC/UPC, Dual Fiber

Product Details:

Place of Origin:	CHINA
Brand Name:	SONBORN
Certification:	CE FCC ROHS
Model Number:	SN-CWDM-MD-D8

Payment & Shipping Terms:

Minimum Order Quantity:	1PC
Price:	Please contact us
Packaging Details:	Cartons
Delivery Time:	5~8 Workdays
Payment Terms:	T/T
Supply Ability:	5000PCS

Contact Now

Detailed Product Description

Wavelength:	8 Channels	Channel Spacing:	20nm
Insettion Loss(dB):	≤ 2.4dB, 2.0dB Typical	Temperature:	Operating -40 To 85°C (-40 To 185°F) Storage -40 To 85°C (-40 To 185°F)
Return Loss:	≥45dB

8 Channels CWDM Mux Demux, 1470-1610nm, with Monitor and Expansion Port, 2.0dB Typical IL, LC/UPC, Dual Fiber

The 8CH Mux Demux is a high-density, low loss, and suitable for long-haul transmission passive DWDM device based on TFF (Thin Film Filter). This unit can be used as either a multiplexer or de-multiplexer (mux/demux). In accordance with the ITU-T G.694.1 100GHz grid, it maximizes the capacity of the C-band range.

Features

Low insertion loss
Broadband transmission
High isolation
High stability and reliability
Epoxy glue

Application

Metro/Access networks
WDM system
Fiber optical amplifier
CATV system

Specification

		Parameter		Value

		CWDM Channels Number 通道数	8		16

	Operation Wavelength (nm) 工作波长			1270-1610

Center wavelength accuracy (nm) 中心波长精度				± 0.5

		Channel Spacing (nm) 信道间距		20

Passband (@-0.5dB bandwidth)(nm) 信道通频带				±7 & ±6.5

		Insertion Loss(dB)插入损耗	2.5		4.5/2.8

	Pass band Flatness(dB)信道平坦度			0.3

Isolation(dB)		Adjacent Channel 邻近信道		30

隔离度		Non-adjacent Channel 非邻近信道		45

Insertion Loss Temperature Sensitivity (dB/°C ) 插入损耗热稳定性				<0.005

Wavelength Temperature Shifting (nm/ °C ) 波长热稳定性				<0.002

		PDL (dB) 偏振相关损耗		<0.10

		PMD (ps) 偏振膜色散		<0.1

		Directivity (dB) 方向性		>50

		Return Loss (dB) 回波损耗		>45

		Rated power (mW) 最大承载功率		500

	Operation Temperature (°C) 工作温度			0 ~ +65

		Storage Temperature (°C) 储存温度		-40 ~ +85

		Dimension (mm) 尺寸		L100×W80×H10

Ordering Information

SCWDM

	8=8 Channels
Channels Number 通道数	16=16 Channels

Application Type 应用类型	M=Mux
Application Type 应用类型	D=DeMux
	D=DeMux

	510=1510nm
	530=1530nm
Central Wavelength 中心波长	550=1550nm
	570=1570nm
	……

Fiber diameter 光纤直径	1=bare fiber
Fiber diameter 光纤直径	2=900um loose tube
	2=900um loose tube

Fiber Length 光纤长度	1=1 Meter
Fiber Length 光纤长度	2=2 Meter
	2=2 Meter

	0=None
	1=FC/APC
	2=FC/PC
Connector 连接头	3=SC/APC
	4=SC/PC
	5=ST
	6=LC
