18 Channels CWDM Mux Demux, 1270-1610nm, with Monitor Port, 5.0dB Typical IL, LC/UPC, Dual Fiber, 1U Rack Mount

Name: 18 Channels CWDM Mux Demux, 1270-1610nm, with Monitor Port, 5.0dB Typical IL, LC/UPC, Dual Fiber, 1U Rack Mount
Brand: SONBORN
SKU: SN-CWDM-MD-D18
Rating: 4.5 (182 reviews)

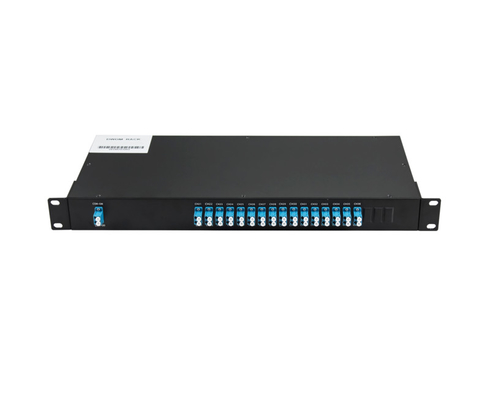

Large Image : 18 Channels CWDM Mux Demux, 1270-1610nm, with Monitor Port, 5.0dB Typical IL, LC/UPC, Dual Fiber, 1U Rack Mount

Product Details:

Place of Origin:	CHINA
Brand Name:	SONBORN
Certification:	CE FCC ROHS
Model Number:	SN-CWDM-MD-D18

Payment & Shipping Terms:

Minimum Order Quantity:	1PC
Price:	Please contact us
Packaging Details:	Cartons
Delivery Time:	5~8 Workdays
Payment Terms:	T/T
Supply Ability:	5000PCS

Contact Now

Detailed Product Description

Wavelength:	18 Channels	Channel Spacing:	100GHz (0.8nm)
Insettion Loss(dB):	≤2.8dB	Temperature:	Operating -40 To 85°C (-40 To 185°F) Storage -40 To 85°C (-40 To 185°F)
Passband (@-0.5dB Bandwidth)(nm):	±0.11	Return Loss:	≥45dB

18 Channels CWDM Mux Demux, 1270-1610nm, with Monitor Port, 5.0dB Typical IL, LC/UPC, Dual Fiber, 1U Rack Mount

The 18CH Mux Demux is a cost-effective, flexible, and suitable for short-distance transmission passive CWDM device based on TFF (Thin Film Filter). This unit can be used as either a multiplexer or de-multiplexer (mux/demux). In accordance with the ITU-T G.694.2, it maximizes the capacity of the C-band range.
In conjunction with sonborn CWDM optical transceivers and OADM, etc., this Mux Demux supports a wide range of architectures from simple point-to-point to amplified ring configurations.

Features

Low Insertion Loss
Wide Pass Band
High Channel Isolation
High Stability and Reliability
Epoxy Free Optical Path

Application

CATV Links
WDM Systems
System Monitoring
Test and Measurement Equipment

Specification

Parameters		Specification
Insettion Loss(dB)		MUX	DEMUX
		3.5	3.5
CWDM Central Wavelengths [λc] (nm)		1270-1610
Passband (@-0.5dB bandwidth)(nm)		±7.5
Insettion	Adjacent Channel	> 32
	Non-Adjacent Channel	>45
Passband Ripple (dB)		≤0.40
Polarization Dependent Loss (dB)		< 0.30
Polarization Mode Dispersion (ps)		< 0.10
Return Loss (dB)		> 45
Directivity (dB)		> 50
Maximum Optical Power (mw)		500
Operating Temperature (℃)		-20 ~ +70
Storage Temperature (℃)		-40 ~ +85
Fiber Type		G.657.A1
Connector Type		LC/UPC
Pigtail Length(m)		0.3
Package Dimension (mm)		1RU Rack

Ordering Information

SCWDM

	8=8 Channels
Channels Number	16=16 Channels

Application Type	M=Mux
Application Type	D=DeMux
	D=DeMux

	510=1510nm
	530=1530nm
Central Wavelength	550=1550nm
	570=1570nm
	……

Fiber diameter	1=bare fiber
Fiber diameter	2=900um loose tube
	2=900um loose tube

Fiber Length	1=1 Meter
Fiber Length	2=2 Meter
	2=2 Meter

	0=None
	1=FC/APC
	2=FC/PC
Connector	3=SC/APC
	4=SC/PC
	5=ST
	6=LC
