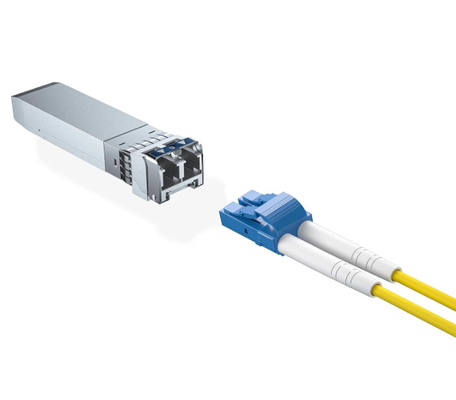

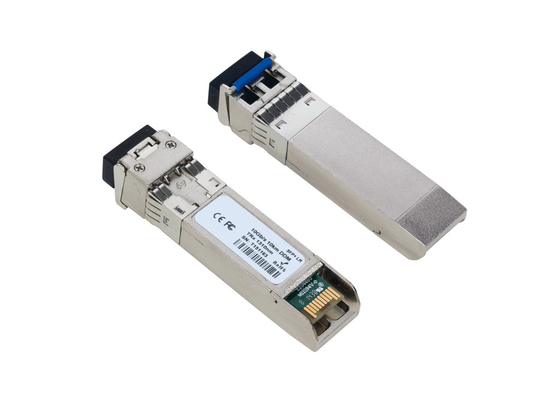

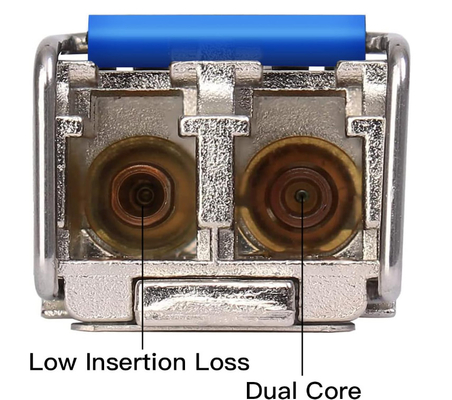

10GBase-LR SFP+ Transceiver, 10G Sfp Single Mode Module Duplex LC for Cisco SFP-10G-LR, Ubiquiti UF-SM-10G, D-Link
SFP-10G-LR is a very compact 10Gb/s optical transceiver module for serial optical communication applications at 10Gb/s. The SFP-10G-LR converts a 10Gb/s serial electrical data stream to 10Gb/s optical output signal and a 10Gb/s optical input signal to 10Gb/s serial electrical data streams. The high speed 10Gb/s electrical interface is fully compliant with SFI specification.The high performance 1310nm DFB transmitter and high sensitivity PIN receiver provide superior performance for Ethernet applications at up to 10km links.The SFP+ Module compliants with SFF-8431, SFF-8432 and IEEE 802.3ae 10GBASE-LR. Digital diagnostics functions are available via a 2-wire serial interface, as specified in SFF-8472. The fully SFP compliant form factor provides hot pluggability, easy optical port upgrades and low EMI emission.
Features
- Supports 9.95 to 11.3Gb/s bit rates
- Hot-Pluggable
- Duplex LC connector
- 1310nm DFB transmitter, PIN photo-detector
- SMF links up to 10km
- 2-wire interface for management specifications compliant with SFF 8472 digital diagnostic monitoring interface
- Power Supply :+3.3V
- Power consumption<1.5W
- Temperature Range: 0~ 70°C
- RoHS compliant and Lead Free
Recommended Operating Environment
| Parameters |
Symbol |
Min. |
Typical |
Max. |
Unit |
| Case operating Temperature |
Industrial |
TC |
-40 |
|
85 |
°C |
| Extended |
-5 |
|
85 |
°C |
| Commercial |
0 |
|
+70 |
°C |
| Supply Voltage |
VCC |
3.135 |
|
3.465 |
V |
| Supply Current |
Icc |
|
|
300 |
mA |
| Inrush Current |
Isurge |
|
|
Icc+30 |
mA |
| Maximum Power |
Pmax |
|
|
1 |
W |
Electrical Characteristics(TOP = 0 to 70°C, VCC = 3.135 to 3.465 Volts)
| Parameter |
Symbol |
Min. |
Typical |
Max. |
Unit |
Note |
| Transmitter Section: |
|
| Input differential impedance |
Rin |
90 |
100 |
110 |
W |
1 |
| Single ended data input swing |
Vin PP |
250 |
|
1200 |
mVp-p |
|
| Transmit Disable Voltage |
VD |
Vcc – 1.3 |
|
Vcc |
V |
2 |
| Transmit Enable Voltage |
VEN |
Vee |
|
Vee+ 0.8 |
V |
|
| Transmit Disable Assert Time |
Tdessert |
|
|
10 |
us |
|
| Receiver Section: |
|
| Single ended data output swing |
Vout,pp |
250 |
|
800 |
mv |
3 |
| LOS Fault |
Vlosfault |
Vcc – 0.5 |
|
VCC_host |
V |
5 |
| LOS Normal |
Vlos norm |
Vee |
|
Vee+0.5 |
V |
5 |
| Power Supply Rejection |
PSR |
100 |
|
|
mVpp |
6 |
Note:
1. AC coupled.
2. Or open circuit.
3. Into 100 ohm differential termination.
4. 10 – 80 %
5. LOS is LVTTL. Logic 0 indicates normal operation; logic 1 indicates no signal detected.
6. All transceiver specifications are compliant with a power supply sinusoidal modulation of 10 Hz to 1.5MHz up to specified value applied through the power supply filtering network shown on page 23 of the Small Form-factor Pluggable (SFP) Transceiver Multi-Source Agreement (MSA), September 14, 1000.
Optical Parameters(TOP = 0 to 70°C, VCC = 3.135 to 3.465 Volts)
| Parameter |
Symbol |
Min. |
Typical |
Max. |
Unit |
Note |
|
| Transmitter Section: |
| Center Wavelength |
λt |
1290 |
1310 |
1330 |
nm |
|
|
| spectral width |
△λ |
|
|
1 |
nm |
|
|
| Average Optical Power |
Pavg |
-8.2 |
|
0.5 |
dBm |
1 |
|
| Optical Power OMA |
Poma |
-5.2 |
|
|
dBm |
|
|
| Laser Off Power |
Poff |
|
|
-30 |
dBm |
|
|
| Extinction Ratio |
ER |
3.5 |
|
|
dB |
7 |
|
| Extinction Ratio |
ER |
6 |
|
|
dB |
6 |
|
| Transmitter Dispersion Penalty |
TDP |
|
|
3.2 |
dB |
2 |
|
| Relative Intensity Noise |
Rin |
|
|
-128 |
dB/Hz |
3 |
|
| Optical Return Loss Tolerance |
|
20 |
|
|
dB |
|
|
| Receiver Section: |
|
| Center Wavelength |
λr |
1260 |
|
1355 |
nm |
|
|
| Receiver Sensitivity |
Sen |
|
|
-14.5 |
dBm |
4,7 |
|
| Receiver Sensitivity |
Sen |
|
|
-14.5 |
dBm |
4,6 |
|
| Stressed Sensitivity (OMA) |
SenST |
|
|
-10.3 |
dBm |
4 |
|
| Los Assert |
LOSA |
-25 |
|
- |
dBm |
|
|
| Los Dessert |
LOSD |
|
|
-15 |
dBm |
|
|
| Los Hysteresis |
LOSH |
0.5 |
|
|
dB |
|
|
| Overload |
Sat |
0 |
|
|
dBm |
5 |
|
| Receiver Reflectance |
Rrx |
|
|
-12 |
dB |
|
|
