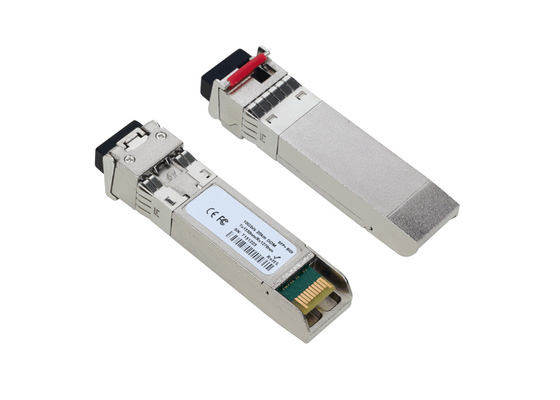

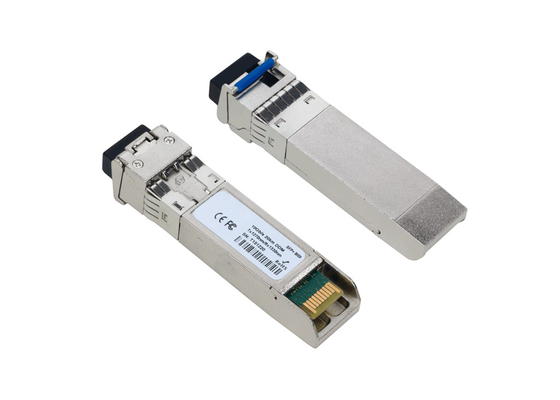

10G SFP+ Bidi Transceivers, SingleMode Module, Bi-Directional Mini gbic (1270nm-TX /1330nm-RX), 20KM, with DDM
10G BIDI SFP+ transceiver supports up to 20km link lengths over OS2 SMF via an LC simplex connector. This 10G BiDi SFP+ transceiver, featured with data transmission over a single strand of fiber, the one transceiver transmits a 1330nm channel and receives a 1270nm signal, whereas the other BiDi SFP+ optics transmits at a 1270nm wavelength and receives a 1330-nm signal.
Digital diagnostics can also be used through the I2C interface designated by SFF-8472 to allow access to real-time operating parameters. Each BIDI SFP+ transceiver module is individually tested to be used on a series of switches, routers, servers, network interface cards (NICs) etc. Featuring low power consumption and high speed, this 10G BIDI SFP+ transceiver is ideal for enterprise wiring closets, service provider transport applications, Radio & Baseband Units, etc.
Features
- Supports 9.95Gb/s to 11.3Gb/s bit rates
- Hot-pluggable SFP+ footprint
- Single LC for Bi-directional Transmission
- Maximum link length of 20km
- Built-in 1270/1330 WDM Filter
- Uncooled 1270nm or 1330nm CWDM DFB Laser.
- Power dissipation <1.5W
- No Reference Clock required
- Built-in digital diagnostic functions
- Temperature range 0°C to 70°C
- Very low EMI and excellent ESD protection
- RoHS Compliant Part
Application
- 10GBASE-LR/LW Ethernet
- SONET OC-192 / SDH
- 10G Fibre Channel
Recommended Operating Environment
| Parameters |
Symbol |
Min. |
Typical |
Max. |
Unit |
| Case operating Temperature |
Industrial |
TC |
-40 |
|
85 |
°C |
| Extended |
-5 |
|
85 |
°C |
| Commercial |
0 |
|
+70 |
°C |
| Supply Voltage |
VCC |
3.135 |
|
3.465 |
V |
| Supply Current |
Icc |
|
|
300 |
mA |
| Inrush Current |
Isurge |
|
|
Icc+30 |
mA |
| Maximum Power |
Pmax |
|
|
1 |
W |
Optical Parameters(TOP = 0 to 70°C, VCC = 3.135 to 3.465 Volts)
| Parameter |
Symbol |
Min |
Typ |
Max |
Unit |
Ref. |
| Transmitter |
| Bit Rate |
BR |
9.9 |
|
11.3 |
Gb/s |
|
| Optical Wavelength |
FPB-2396-20 |
λ |
1260 |
1270 |
1280 |
nm |
|
| FPB-3296-20 |
|
1320 |
1330 |
1340 |
|
| Average output power |
Po |
-3 |
|
+2 |
dBm |
|
| Optical Extinction Ratio |
ER |
3.5 |
|
|
dB |
|
| Spectral width |
Δλ |
|
|
1 |
nm |
|
| Side Mode Suppression Ratio |
SMSR |
30 |
|
|
dB |
|
| Optical Eye Mask |
|
Compliant with IEEE802.3ae |
|
| Receiver |
| Bit Rate |
BR |
9.9 |
|
11.3 |
Gb/s |
|
| Optical Wavelength |
FPB-2396-20 |
λ |
1320 |
1330 |
1340 |
nm |
|
| FPB-3296-20 |
|
1260 |
1270 |
1280 |
|
|
| Receiver Sensitivity |
Sen |
|
|
-14.5 |
dBm |
1 |
| Maximum Input Power |
PMAX |
0 |
|
|
dBm |
|
| LOS De-Assert |
LOSD |
|
|
-15 |
dBm |
|
| LOS Assert |
LOSA |
-25 |
|
|
dBm |
|
| LOS Hysteresis |
LOSH |
0.5 |
|
4 |
dB |
|
